General Purpose Pump

About Products

General Purpose pumps are designed for use where low flow transfer duties in domestic and wide range of industrial applications are required. These pumps have excellent suction lift capability up to 8 meters for water.. It is available in close coupled configurations and with standard IEC frame motors.

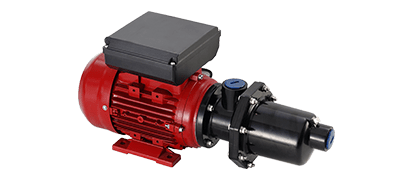

DC Series Pump

Capacity: up to 8 m3/hr
Pressure: up to 3 bar

Roto’s Little-Champ DC Pump range are compact, light weight and easy to maintain. 11,12 & 31 pump sizes are available with UV resistant Acetyl-co-polymer housing and 41 & 51 pump sizes are available with cast Iron housing.

MC Series Pump

Capacity: up to 2.8 m3/hr
Pressure: up to 5 bar

Roto’s Robust MC Pump range are widely used for general pumping and transfer duties. These pumps are available in 5 sizes with capacities ranging from 750 LPH to 2800 LPH and pressure up to 5 bar.

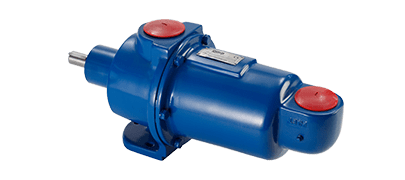

SC Series Pump

Capacity: upto 12 m3/hr
Pressure: upto 3.5 bar

These General purpose pumps are designed for transfer duties in light industrial applications.

Catalogue

Performance Data


Little Champ ‘DC’ Series Pumps (DC Series Pumps)

Size DC11 DC12 DC31 DC41 DC51
Capacity
  m3/hr
 0.72 0.9 1.74 4 8
  GPM
 3.17 3.96 7.66 17.6 35
Pressure
  Bar
 2.8 2.8 2.8 2.8 2.8
  PSI
 40 40 40 40 40


Mini Range ‘MC’ Series Pumps (MC Series Pumps)

Size MCCS MCCF MCCG MCCH MCCL
Capacity
  LPH
 750 1150 1600 2800 3100
  GPM
 3.3 5 7 12.3 13.65
Pressure
  Bar
 3.5 3.5 3.5 3.5 3.5
  PSI
 50 50 50 50 50


Mini Range ‘SC’ Series Pumps (SC Series Pumps)

Size SC311 SC321 SC331 SC441
Capacity
  m3/hr
 0.45 1 22 3.5
  GPM
 1.98 4.7 94 15
Pressure
  Bar
 3.5 3.5 3.5 3.5
  PSI
 50 50 50 50

Material Options

DC Series

WETTABLE HOUSING COMPONENTS:
• UV Resistant acetate co-polymer housing for pump sizes DC 11 & DC 31
• C.I. Housing parts for pump sizes DC 41 & DC 51

STATOR:
• Natural, • Nitrile • High Nitrile • Fluoroelastomer

ROTOR:
• Stainless Steel

SHAFT:
• Stainless Steel

ROTOR SURFACE COATINGS:
• Hard Chrome Plating

MC Series

WETTABLE HOUSING COMPONENTS:
• Cast Iron

STATOR:
• Natural, • Nitrile • High Nitrile • EPDM • Chloro-Sulphonated Rubber • Fluoroelastomer

ROTOR:
• Stainless Steel

SHAFT:
• Stainless Steel

ROTOR SURFACE COATINGS:
• Hard Chrome Plating

SC Series

WETTABLE HOUSING COMPONENTS:
• Ductile Iron • Cast Stainless Steel

STATOR:
• Natural, • Nitrile • High Nitrile • EPDM • Chloro-Sulphonated Rubber • Fluoroelastomer

ROTOR:
• Stainless Steel

SHAFT:
• Stainless Steel

ROTOR SURFACE COATINGS:
• Hard Chrome Plating

Sealing Options

ROTO SEAL CODE ‘Q’ For DC Series

MEDIA PROPERTIES: Low to high viscosities, with solids.
APPLICATIONS: Domestic & industrial sewage treatment.
DESCRIPTION: Single acting, unbalance, single helical coil spring, elastomeric bellow seal and bi-directional.
PRESSURE RANGE: Up to 12 bar

ROTO SEAL CODE ‘y’ For MC Series

MEDIA PROPERTIES: Low to high viscosities with solids.
APPLICATIONS: Domestic & industrial sewage treatment.
DESCRIPTION: Single acting, unbalance, single helical coil spring, elastomeric bellow seal and bi-directional.
PRESSURE RANGE: Up to 12 bar

ROTO SEAL CODE ‘y’ For SC Series

MEDIA PROPERTIES: Low to high viscosities with solids.
APPLICATIONS: Domestic & industrial sewage treatment.
DESCRIPTION: Single acting, unbalance, single helical coil spring, elastomeric bellow seal and bi-directional.
PRESSURE RANGE: Up to 12 bar

Industries

DC Series

  • Transfer and dosing of chemicals and alkalies
  • Transfer duties in food processing, winery and vegetable oils
  • Drainage of septic tanks
  • Feeding to oily water separators
  • Drawing water from wells, creeks or shallow bores
  • Hosing down of cattle and stock sheds
  • Automatic water pressure systems
  • Berine injection
  • Fiiding ponds and sprinkler systems
  • Diesel transfer
  • Hndling surfactants and detergents

MC Series

  • Cellar drainage
  • Septic tank/cess pit emptying
  • Garden sprinkler systems/ irrigation
  • Water supply/sampling form wells, streams and rivers
  • Diesel
  • Water based inks
  • Vegetable oils
  • Non-aggressive chemicals

SC Series

  • Drainage of septic tanks
  • Feeding to garden, sprinkler system
  • Drawing water from wells, creeks or shallow bores
  • Diesel transfer
  • Feeding to oily water separators
